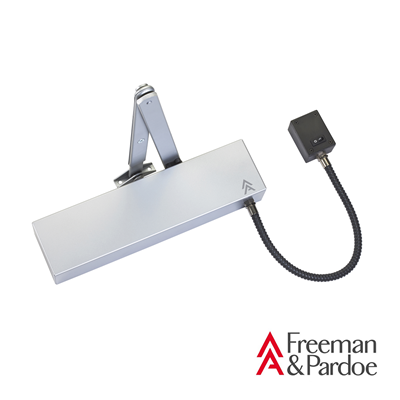

Arrow Electromagnetic Hold Open or Swing Free - 623/4/5/6 - Fig. 1 / 61

The Arrow Electromagnetic Hold Open or Swing Free series of Fire Door Closers is the ultimate solution to ensure compliance with both Fire Safety regulations and BS8300 and ADM guidelines.

Hold Open Mode

Linked to the buildings Fire Detection system, Hold Open Mode can be used to safely and legally hold open doors throughout a building to aid flow of traffic and provide barrier free access, but upon detection of a fire, releases the door automatically allowing it to close and prevent the spread of flame and smoke.

Swing Free Mode

The Swing Free Electromagnetic Closer allows the door to operate as if no closer was fitted by providing virtually no opening resistance. Linked to the buildings Fire Detection system, the closer can be held open at any angle specified by the user but shuts automatically upon first detection of a fire – preventing the spread of flame and smoke.



  • From:

    £0.00 (exc VAT)

Customise and add to your basket:

Power

Please note: The lead times of Metallic and Special Finishes will vary depending on finish and stock levels.

  1. Standard Silver
  2. Stainless Steel
  3. Metallic
  4. RAL
  5. Special Metallic
    + £POA
  6. Special RAL
    + £POA
  7. Metallic Powder
    + £POA
  1. Silver

    Silver

  2. 304 Satin Stainless Steel

    304 Satin Stainless Steel

    304 Polished Stainless Steel

    304 Polished Stainless Steel

  3. Antique Brass

    Antique Brass

    Polished Brass

    Polished Brass

    Satin Chrome

    Satin Chrome

  4. 1023 Traffic Yellow

    1023 Traffic Yellow

    5002 Ultramarine Blue

    5002 Ultramarine Blue

    7016 Anthracite Grey

    7016 Anthracite Grey

    9010 Pure White

    9010 Pure White

    9017 Traffic Black

    9017 Traffic Black

    3020 Traffic Red

    3020 Traffic Red

    6016 Turquoise Green

    6016 Turquoise Green

    7043 Traffic Grey

    7043 Traffic Grey

    Dark Bronze

    Dark Bronze

    Gold

    Gold

  5. Bronze Anodised Aluminium

    Bronze Anodised Aluminium

    Silver Anodised Aluminium

    Silver Anodised Aluminium

    Antique Copper

    Antique Copper

    Antique Bronze (IBMA)

    Antique Bronze (IBMA)

  6. 5003 Sapphire Blue

    5003 Sapphire Blue

    7043 Traffic Grey (Matte)

    7043 Traffic Grey (Matte)

    5011 Steel Blue

    5011 Steel Blue

    6012 Black Green

    6012 Black Green

  7. Polychromatic Bronze

    Polychromatic Bronze

    Polychromatic Silver

    Polychromatic Silver

Enter your details:

The Arrow Electromagnetic Hold Open or Swing Free series of Fire Door Closers is the ultimate solution to ensure compliance with both Fire Safety regulations and BS8300 and ADM guidelines.

Hold Open Mode

Linked to the buildings Fire Detection system, Hold Open Mode can be used to safely and legally hold open doors throughout a building to aid flow of traffic and provide barrier free access, but upon detection of a fire, releases the door automatically allowing it to close and prevent the spread of flame and smoke.

Swing Free Mode

The Swing Free Electromagnetic Closer allows the door to operate as if no closer was fitted by providing virtually no opening resistance. Linked to the buildings Fire Detection system, the closer can be held open at any angle specified by the user but shuts automatically upon first detection of a fire – preventing the spread of flame and smoke.



Electromagnetic Door Closer (links to Fire Detection System); Scissor Arm; Hold Open or Swing Free Configuration; Pull Side (Fig. 1) or Transom Mount (Fig. 61) Fitting Only; Adjustable Latching & Speed as standard

The 623/4/5/6 Fig. 1 / Fig. 61 Hold Open or Swing Free collection of closers are available in the following power sizes and door weights/widths:

Model Number: 623        624        625        626
Fig. 1 - Body Door Mount Pull (Projecting Arm)    3    4    5    6
Fig. 61 - Body Transom Mount Push (Projecting Arm)       3    4    5    6





Fire Tested: BS EN 1634

Body Specification:

Length (mm)  Height (mm) Depth (mm) Weight (kg)
278 60 46 2.3 / 2.35 (variable by model)

Meeting the requirements for Ease of Access

The Guild of Architectural Ironmongers (GAI) and BS 8300 recommends the inclusion of Electromagnetic solutions to ensure standards for Ease of Access, Building Regulations, the Equality Act and Advanced Document M (ADM) are met.

Compared with traditional Mechanical Door Closers, Electromagnetic Door Closers have extremely low opening forces, and therefore are not materially affected by external factors such as hinges, seals, latches, air pressure and variable fitting standards & positions.

As can be seen from the table below our Electromagnetic Door Closers operate at a wide range of CE Powers and Door Widths, all meeting the requirements for ADM:

CE Power Size        Model Number        Minimum Door Widths for ADM       Maximum Door Widths for ADM
3 623PSO 750mm 950mm
4 624PSO 750mm 1100mm
5 625PSO 750mm 1250mm
6 626PSO 750mm 1400mm



Cover Options: Available in Square or Flowline

Finish Options: Available in Silver as standard or can be customised in one of our bespoke Metallic or Colour finishes. We can also offer quotes to match any existing ironmongery.

Material: Manufactured from British Extruded Aluminium and British Steel
