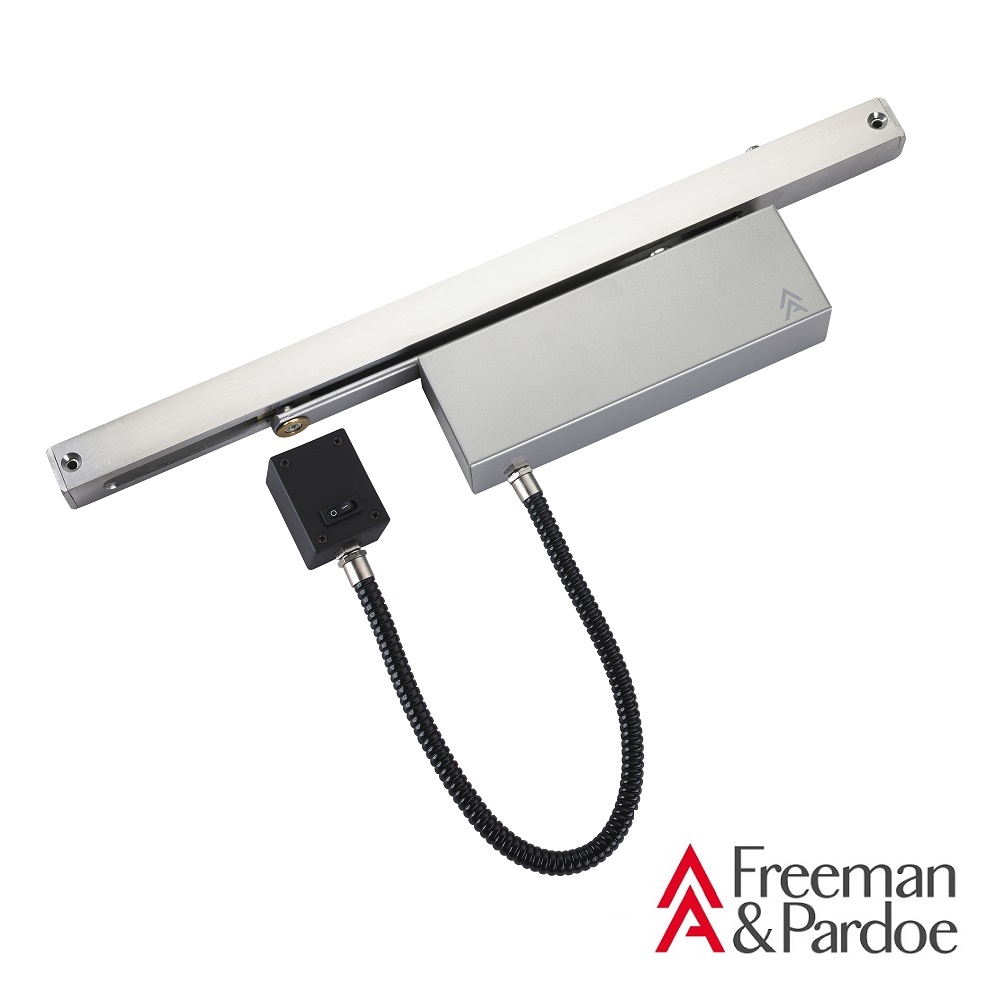

Arrow Electromagnetic 324 Cam Closer

The Arrow Electromagnetic Hold Open series of Fire Door Closers is the ultimate solution to ensure compliance with both Fire Safety regulations and BS8300 and ADM guidelines.

Hold Open Functionality

Linked to the buildings Fire Detection system, the Hold Open Electromagnetic Cam can be used to safely and legally hold open doors throughout a building to aid flow of traffic and provide barrier free access, but upon detection of a fire, releases the door automatically allowing it to close and prevent the spread of flame and smoke.

ElectromagneticDoor Closer (links to Fire Detection System); Slide Arm; Hold Open Configuration Only; Pull Side Fitting Only (Figure 1); Adjustable Latching & Speed as standard

Fire Tested: BS EN 1634

Body Specification:

 Meeting the requirements for Ease of Access

The Guild of Architectural Ironmongers (GAI) and BS 8300 recommends the inclusion of Electromagnetic solutions to ensure standards for Ease of Access, Building Regulations, the Equality Act and Advanced Document M (ADM) are met.

Compared with traditional Mechanical Door Closers, Electromagnetic Door Closers have extremely low opening forces, and therefore are not materially affected by external factors such as hinges, seals, latches, air pressure and variable fitting standards & positions.

As can be seen from the table below our Electromagnetic Door Closers operate at a wide range of CE Powers and Door Widths, all meeting the requirements for ADM:

Cover Options: Available in Square or Flowline

Finish Options: Available in Silver as standard or can be customised in one of our bespoke Metallic or Colour finishes. We can also offer quotes to match any existing ironmongery.

Material: Manufactured from British Extruded Aluminium and British Steel
